9.35 Inch Bar Type TFT 320X1280 dots 40pins MIPI Interface 1000cd/M2 TFT Display Panel

Name: 935 Inch Bar Type TFT 320X1280 dots 40pins MIPI Interface 1000cdM2 TFT Display Panel
Brand: HuaXin
Price: 15 USD

Buy cheap 9.35 Inch Bar Type TFT 320X1280 dots 40pins MIPI Interface 1000cd/M2 TFT Display Panel product

Brand Name : HuaXin

Model Number : HX935002B0

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1~1000

Price : $15~$14.5

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : bar type tft display

Name : bar type tft

Display size : 9.35 inch tft

Resolution : 320*3RGB(H)X1280(V)

interface : MIPI

Brightness : 1000c/d

View angle : all

Contact Now

9.35 Inch Bar Type TFT 320X1280 dots 40pins MIPI Interface 1000cd/M2 TFT Display Panel

Key Specifications

ITEM	Specification
Model Number	HX935002B0
size	9.35
LCD Type	Normally Black
Drive element	TFT active matrix
Number of pixels	320*3RGB(H)X1280(V)
Pixel arrangement	RGB stripe
Pixel Pitch (W*H)	/
Active area	58.08(H) *232.7(V)
Mechanical OutlineSize(WHT)	64.48246.154.5
Viewing direction	ALL O’CLOCK
LCM Driver IC	ICN9707
LCM interface	MIPI Interface
Lcm pin count	40
Backlight leds	24
operating temperature	-20~70
storage temperature	-30~80
Luminance	1000

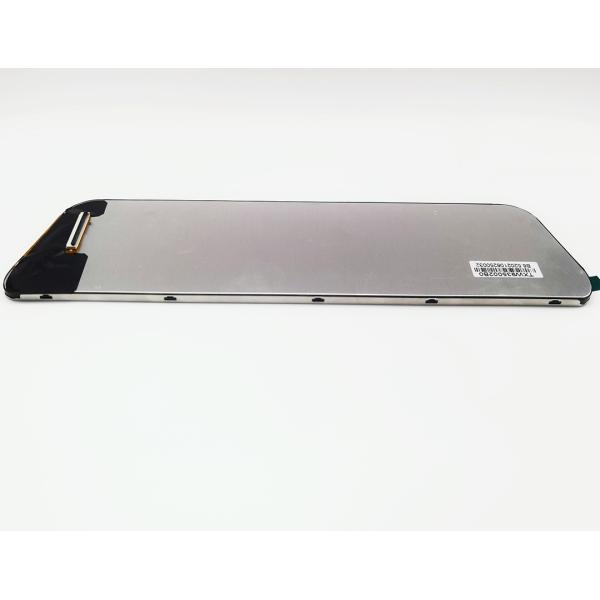

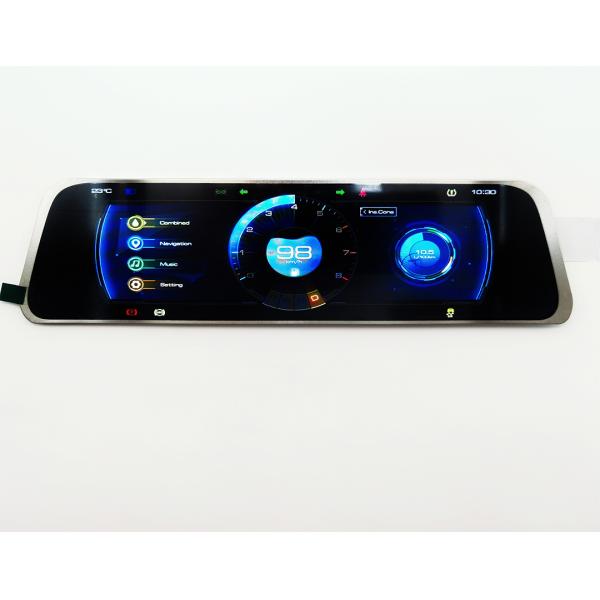

Product Images

9.35 Inch Bar Type TFT 320X1280 dots 40pins MIPI Interface 1000cd/M2 TFT Display Panel

Technical Drawings

TFT Display Characteristics

High resolution (480×640) with excellent image quality and color accuracy
Fast response time for smooth motion display
Wide viewing angles with minimal color shift
Energy efficient design with low power consumption
LED backlighting for uniform illumination
Robust construction for industrial applications

Product Applications

Automotive displays and navigation systems
Medical devices and diagnostic equipment
Industrial control systems and HMI
Handheld devices and portable instruments
Digital signage and advertising displays

Manufacturer Information

Company Advantages

Cost-effective production with mainland China factory
Advanced equipment ensuring consistent quality
Fully automated production processes
20+ years of engineering expertise
Custom design capabilities for specialized applications

Certifications

ISO14001 Environmental Management
ISO9001/IATF16949 Quality Management
SGS certified LCD modules

Company Profile

Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products

Product Range

LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series

Production Capacity

Product	2021	2022	2023	2024	2025	Unit
LCD Production	4.5	9	9	9	9	Thousands/Day
LCM Production	70	150	300	450	450	Thousand pieces/Day
Backlight Production	100	200	300	500	500	Thousand pieces/Day
OLED Production	10	20	30	40	50	Thousand pieces/Day
