2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,

Brand Name : HuaXin

Model Number : HX168BAR010

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $2-$3

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT module

Name : tft panel

Display size : 2.79 inch

Resolution : 142*428

interface : 4 LINE MIPI

Driving IC : NV3007

Brightness : 350C/D

view angle : all

Contact Now

2.79-inch TFT LCD Color Screen
2.79-inch TFT LCD long strip color screen with 142×428 resolution and NV3007 driver chip. Features serial port interface for high-definition display, suitable for industrial equipment status bars and smart terminal data screens. Plug-and-play design with narrow space adaptation.
Key Features
  • 2.79-inch TFT LCD color screen with 142×428 long strip resolution
  • NV3007 driver chip with 4 LINE SPI interface
  • Designed for industrial equipment status bars
  • Compact design for easy installation in narrow spaces
  • Stable display performance with 350C/D brightness
  • Wide viewing angle for all orientations
Technical Specifications
Display Technology TFT module
Display Size 2.79 inch
Resolution 142×428
Interface 4 LINE SPI
Driving IC NV3007
Brightness 350C/D
View Angle All
Part No. HX279BAR010
Outline Size (mm) 69.43(H)*24.38(V)*2.15(D)
AA Size (mm) 21.28*64.14mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

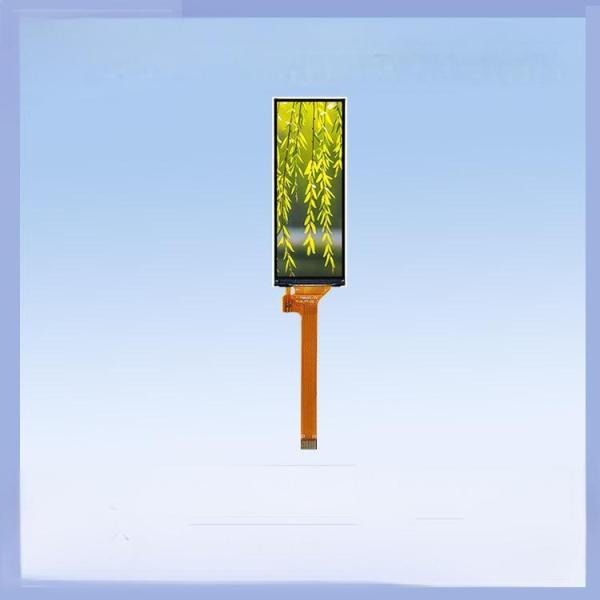

Product Images

2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,
TFT Product Knowledge

2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,
2.79-inch TFT LCD color screen | 142×428 long strip resolution, NV3007 driver, serial port screen, dedicated for industrial equipment status bars,
Manufacturer Advantages
  • Cost-effective factory location in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
About Huaxin Technology (Enshi) Co., LTD
Located in Hubei Enshi, founded in 2009. High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.
Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation & printers
  • Video calls & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
